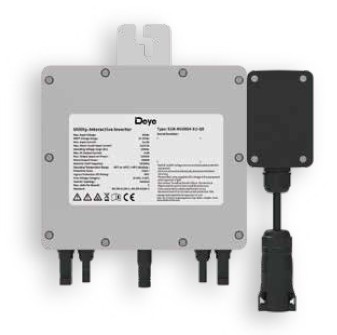

SUN-M80G4-EU-Q0
Available for purchase

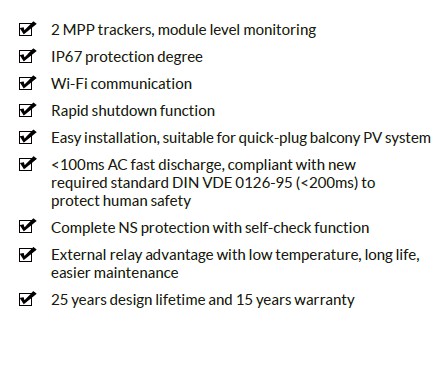

Product Features
01
2 MPP trackers, module level monitoring
02
IP67 protection degree, *10 years warranty
03
Rapid shutdown function
04
WIFI communication
Technical Parameter
- Sheet 1
| Model | SUN-M60G4-EU-Q0 | SUN-M80G4-EU-Q0 | SUN-M100G4-EU-Q0 |
| Input Data (DC) | |||
| Recommended Input Power (STC) | 210-420W (2 Pieces) | 210-560W (2 Pieces) | 210-700W (2 Pieces) |
| Maximum Input DC Voltage (V) | 60 | ||
| MPPT Voltage Range (V) | 25-55 | ||
| Full Load DC Voltage Range (V) | 30-55 | 33-55 | 40-55 |
| Max. DC Short Circuit Current (A) | 2×19.5 | ||
| Max. Input Current (A) | 2×13 | ||
| No.of MPP Trackers | 2 | ||
| No.of StringsperMPP Tracker | 1 | ||
| Output Data (AC) | |||
| Max. Output Apparent Power (VA) | 600 | 800 | 1000 |
| Rated Output Power (W) | 600 | 800 | 1000 |
| Rated Output Current (A) | 2.8/2.7 | 3.7/3.5 | 4.6/4.4 |
| Max.AC Output Current(A) | 2.8/2.7 | 3.7/3.5 | 4.6/4.4 |
| Grid Connection Form Rated output voltage/range (V) |
L+N+PE 220V/184V-242V 230V/ 195.5V-253V | ||
| Rated Grid Frequency/range(Hz) | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | ||
| Power Factor Adjustment Range | 0.95 leading-0.95lagging | ||
| Total Harmonics Current Distortion (THDi) | <3% | ||
| DC Component Of Grid | <0.5%ln | ||
| Maximum Units per Branch | 8 | 6 | 5 |
| Efficiency | |||
| Max Efficiency | 96.5% | ||
| MPPTEfficiency | >99% | ||
| Mechanical Data | |||
| NightTime Power Consumption | 50mW | ||
| Ambient Temperature Range | -40 to +65℃, >45℃ Derating | ||
| Cabinet Size (WxHxD mm) | 280×190×40 (Excluding Connectors and Brackets) | ||
| Weight (kg) | 3 | ||
| Cooling | Free Cooling | ||
| Enclosure Environmental Rating | IP67 | ||
| Features | |||
| Communication | WIFI | ||
| Grid Connection Standard | IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98,VDE-AR-N 4105 |
||
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
| Warranty | 10 Years | ||
| *Note: 15 Years Warranty (Only Installed in Germany and Austria) | |||
