Tile Roof Mounting System I

CNBM Germany offers clients solar racking and tracking systems that are mainly from Kseng Solar for residential, commercial and utility-scale solar applications.

Consulting Prices

Available for purchase

Product Features

Avantages background — 01

Creative clamp mount by push into rails directly.

01

Creative clamp mount by push into rails directly.

02

Special clamp clip could offer adjustable height.

03

Fast and simple installation, precise adjust height for roofs.

Technical Parameter

Parameters
Roof Hook
Rail
Mid &End Clamps
Bolts and Nuts
Tile Roof Hooks

Parameters
Material	AL6005-T5, SUS304/SUS410	Module orientation	Landscape and portrait
Surface treatment	Anodized	Applicable module thickness	30mm-40mm
Module	Framed	Warranty	10 years

Roof Hook

Roof-hook-1

Item number	Thickness	Material
RH-304-0802	6mm	SUS 304
Roof decking	Carriage bolts
Tiled roof	M10251

Roof-hook-2

Item number	Thickness	Material
RH-0041	5mm	SUS 304
Roof decking	Carriage bolts	Carriage bolts
Tiled roof	st6.3*80mm	M10252

Roof-hook-3

Item number	Thickness	Material
RH-0016	5mm	SUS 304
Roof decking	Carriage bolts
Tiled roof	st6.3*80mm

Roof-hook-4

Item number	Thickness	Material
RH-0009	5mm	SUS 304
Roof decking	Carriage bolts
Tiled roof	M10252

Rail

Rail

Item No.	W	H	Material
RH-0059	40mm	40mm	AL 6005-T5
Various lengths available

Mid &End Clamps

Mid-End-Clamps

Material

AL 6005-T5

Universal module clamps

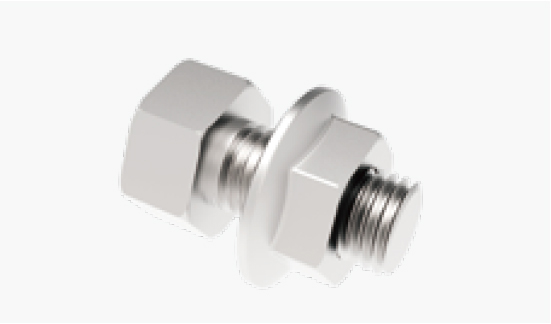

Bolts and Nuts

Sheet-2

Material

SUS 304

Tile-Roof-Mounting-System-I-Tile-roof-hooks
